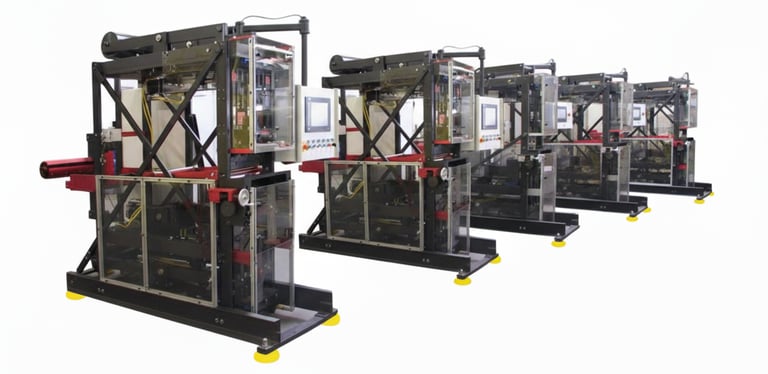

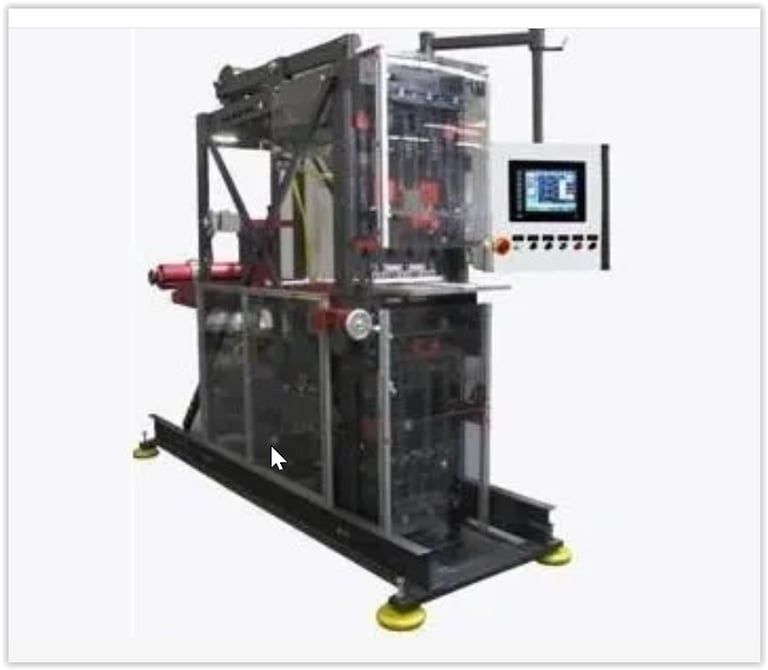

CNC Fin Machine

Fin Machine Features and Benefits

Use of Existing Dies

• The fin machine is compatible with existing dies from other 18” folding fin machines.

• Dies open to the actual fin height, reducing machine wear and allowing faster operating speeds.

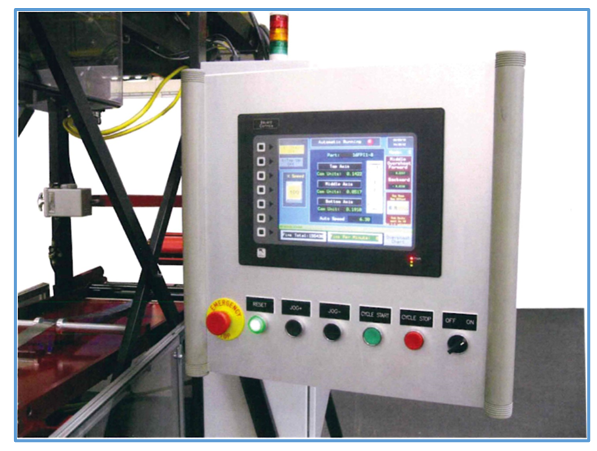

Touch Screen Control

• Equipped with a touch-screen CNC control panel for simplified operation and improved user experience.

Ease of Setup

• Operators can store previous job settings and quickly recall them for future runs, significantly reducing setup time.

Raw Material / Pay-Out Reel

• Built-in automatic coil mandrel for consistent raw material feeding.

Lubrication

• All precision slide components are lubricated, reducing maintenance downtime and extending machine life.

Quality and Repeatability

• Repeatable setup ensures consistent results and minimizes the risk of operator error by reusing proven “recipes” for recurring jobs.

Daily Fin Count

• Tracks how many fins are produced each day, providing an overview of production output and average fins per minute.
  (Located in Main Menu → Tools → Fin Count Files)

Quiet Operation

• Exceptionally quiet—no ear protection required.

Fast Setup

• Fin jobs can be set up in minutes, instead of hours or days.

Job Fin Count

• Displays the number of fins created since the last reset.

Auto Feed

• Automatically feeds raw material into the machine for continuous operation.

Top Up

• Moves the top head to the “up” position to allow new material to be loaded.

Step Mode

• Allows a single cycle (two fins at a time) each time “Cycle Start” is pressed.

Top-Down Run Offset

• Fin height can be adjusted during automatic operation.
  Note: Adjustments are NOT measured in inches.
